In the world of off-road forklifts, the “5-ton capacity” label is commonly seen—but only a few machines can truly withstand the rigors of demanding worksites. The Pioneer50A model sets itself apart with heavy-duty engineering in its frame, mast, and hydraulic cylinders. These structural choices represent the true difference between an authentic 5-ton rough terrain forklift and those with inflated specs.
1. Chassis: The Foundation of Load-Bearing Strength

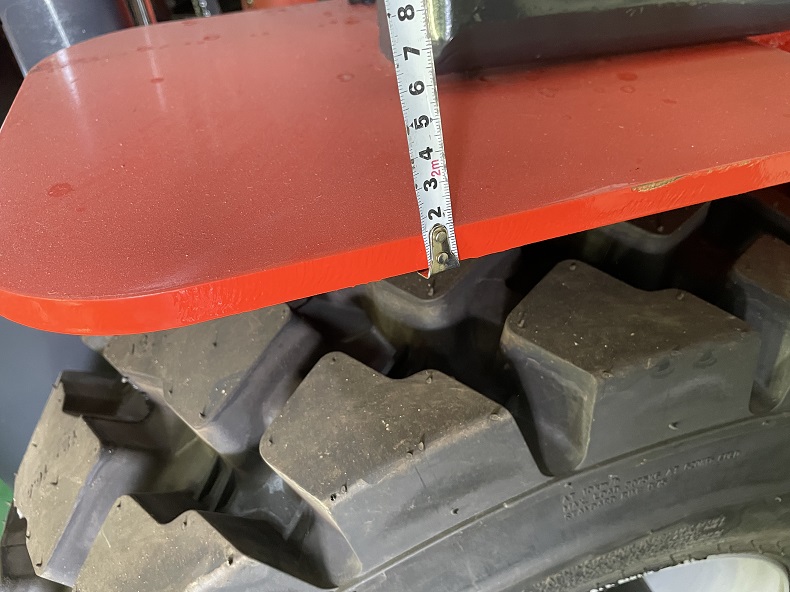

The Pioneer50A’s chassis is crafted from high-strength alloy steel, fully welded for maximum durability. Photos of the unit reveal robust crossbeams and upright supports. Unlike many forklifts that claim a 5-ton capacity but use thinner steel to cut costs, the Pioneer50A boasts frame wall thicknesses of 12–15 mm. Key joint areas are reinforced with multi-layer structural welds, creating a skeleton-like frame that distributes stress effectively.
Whether operating on muddy construction sites or rugged mountain terrain, this sturdy frame remains the backbone of the forklift, ensuring reliable support for all components under full load and harsh conditions.
2. Mast: The Steel Arms That Get the Job Done

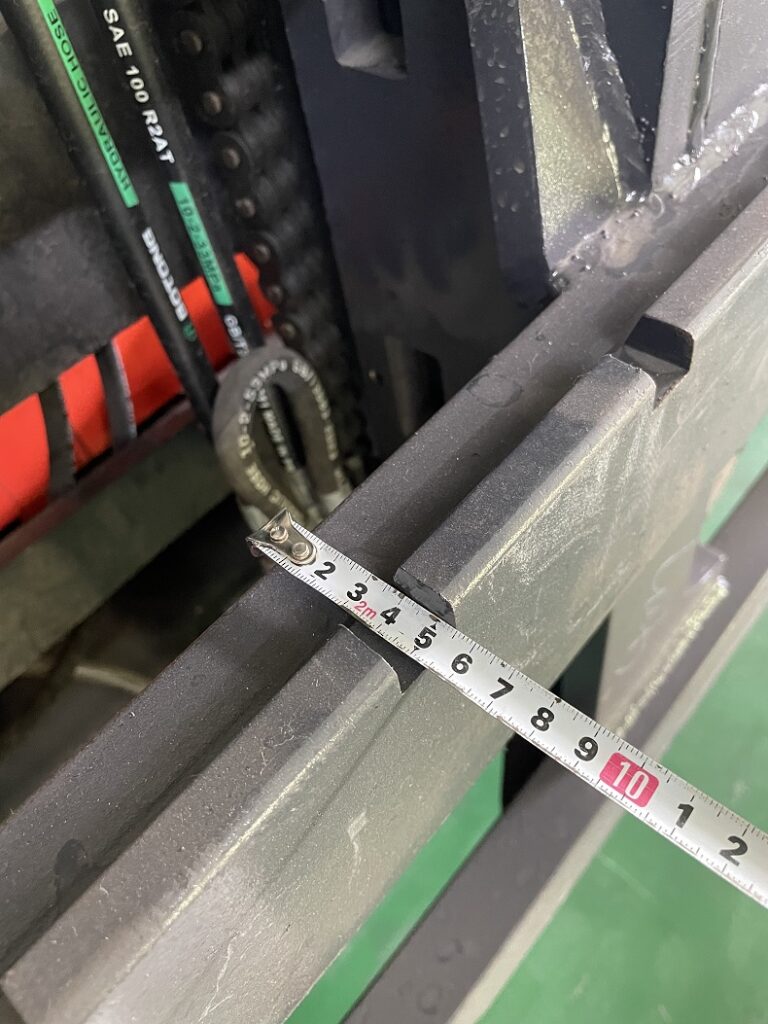

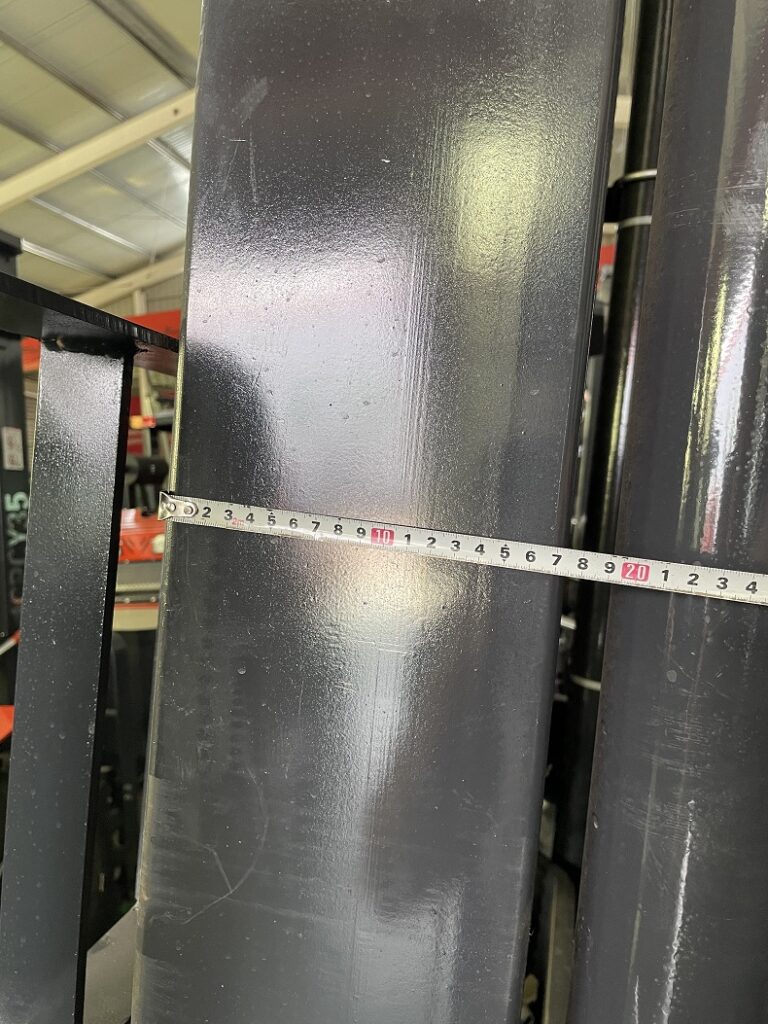

The mast is the working arm of the forklift, and Pioneer50A’s dual-stage mast reflects uncompromising strength. Both the inner and outer mast rails are made from high-strength I-beam steel, with cross-sectional dimensions of 170 × 65 mm, significantly larger than those found in weaker, overrated models.
Key mast features include:
- High-wear cast iron rollers paired with precision bearings for smooth lifting under load
- 50 mm diameter pivot shafts connecting the mast to the frame
- Self-lubricating bushings to minimize long-term wear and maintain lifting precision
This rugged design delivers not only operational stability but also superior durability, ensuring long-term performance under real 5-ton working conditions.
3. Hydraulic Cylinders: The Muscle Behind the Motion

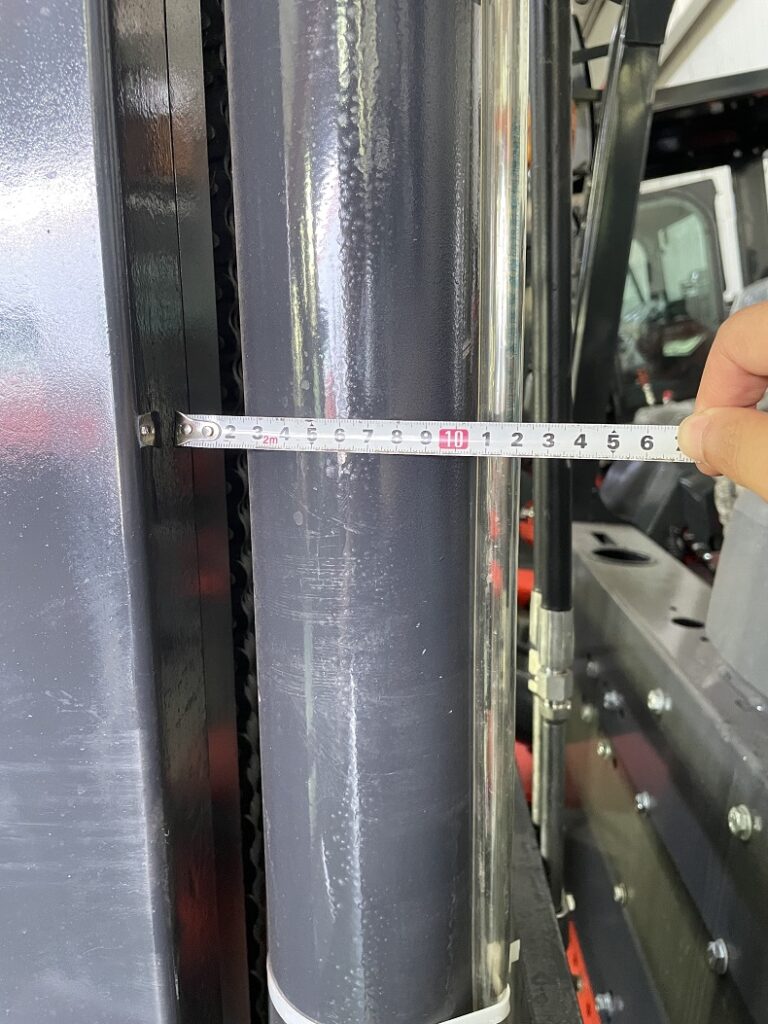

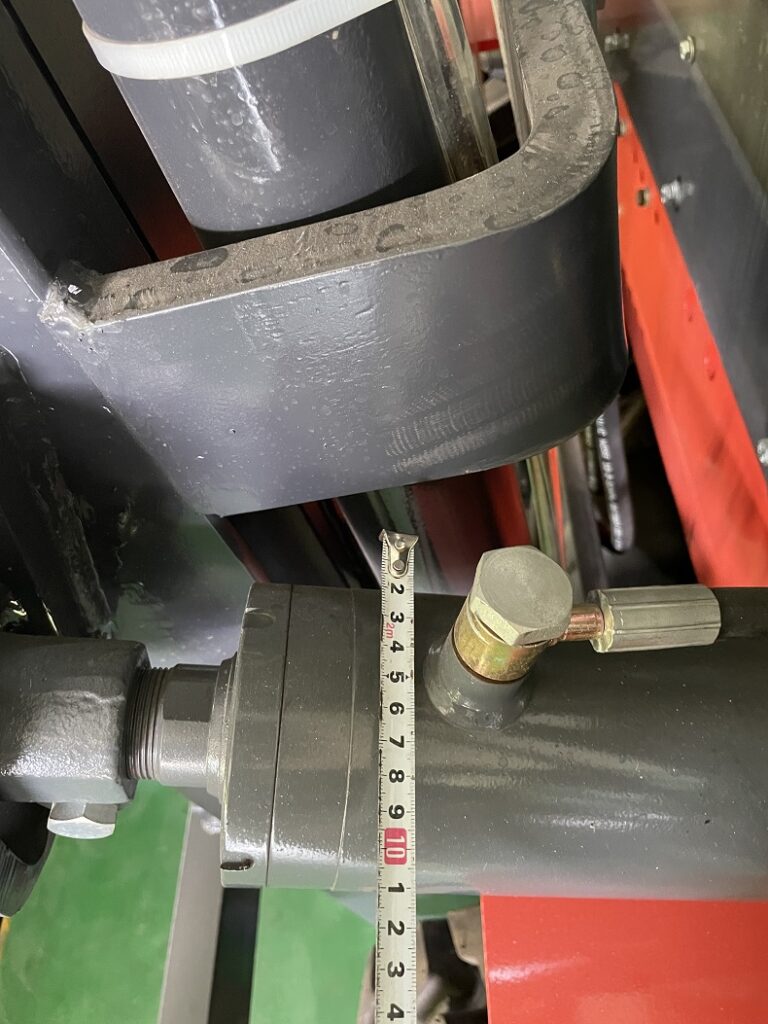

Hydraulics are the muscle of any forklift, and the Pioneer50A brings serious power to the table. The main lift cylinder features a 110 mm bore, made from high-quality 45# chrome-plated steel with a surface hardness exceeding HRC50. This protects against internal wear and hydraulic fluid corrosion.
In contrast, substandard forklifts often use only 85 mm bore cylinders and inferior piston materials, which are prone to bending, leakage, and failure under heavy load. The Pioneer50A also uses high-pressure imported seals, capable of maintaining tight seals even at 30 MPa working pressure, ensuring stable and consistent hydraulic output under maximum load.
Built for Real 5-Ton Performance—Not Just On Paper
From a rock-solid frame to a reinforced mast and industrial-grade hydraulics, the Pioneer50A shows what true 5-ton off-road capability means in every detail. These features aren’t just specs—they’re proof of commitment to real-world performance.
While others may inflate their labels, the Pioneer50A delivers the structural strength and reliable output professionals can trust, especially in high-demand environments where performance matters most.
