The kaida CPCY50（kaystar Pioneer50A） is the world's smallest all-terrain all-wheel drive forklift with excellent performance and a compact body.5000kg rough terrain forklift for sale.
Position:HOME » Products Pioneer Series

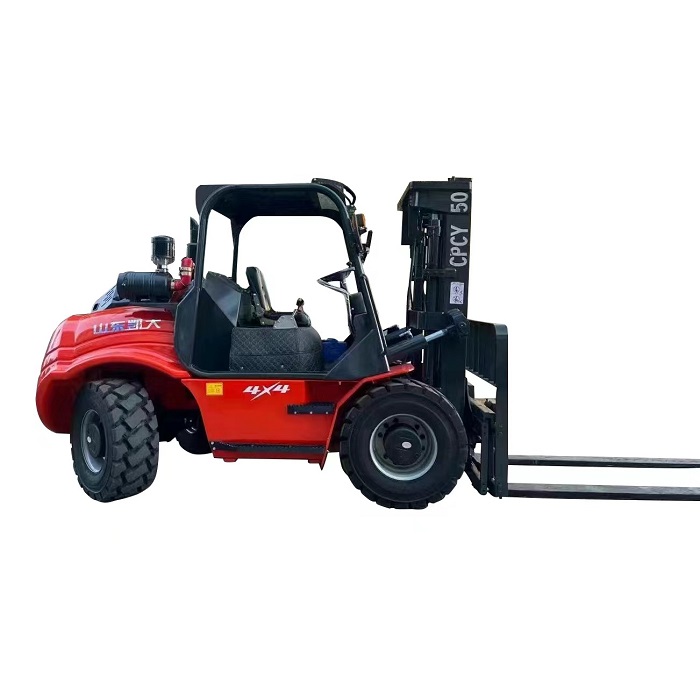

Pioneer-50A 4WD Rough Terrain Forklift

Category Pioneer Series Post time： 2024-09-08
Kaystar Pioneer-50A 4WD Rough Terrain Forklift（4WD）

Details

ManufacturerKaystar
Model NamePioneer50A
AxleWheel speed reduction
GearboxTorque Converter
Power sourceDiesel
Operator typeSeated
Rated Load(kg)5000
Max. capacity(kg)5000
Max. Lift Height(mm)3000-6000
Mast forward tilt angle（Degree）6
Mast back elevation angle12
Machine Weight(Kg)6800
Max.Grade Ability≤35°
Steering ModeRear wheel steering
Drive modeFour-wheel drive(AWD)
Number of drive wheels4
Tyres typeCustomized pneumatic solid tire(tubeless)/solid
Dimensions of front wheels12-16.5
Dimensions of rear wheels12-16.5
Minimum Ground Clearance（mm）220
Wheelbase(mm)1810
Min.Turning Radius(mm)2900
Engine brandChina
Engine Power(kw)76
Service brakeHydraulic brake
Travel speed(km/h)30-35
Type of drive controlHydraulic
CounterweightCast Iron
Fork length(mm)1220,1370,1520,1670,1820,ect.
Overall dimensions(mm)3280*1600*2200(LWH)
Kaystar Pioneer50A Compact 4WD Forklift Features
