Kaystar Pioneer40A (CPCY40 KAIDA China),4t 4x4 load capacity rough terrain forklift.factory data

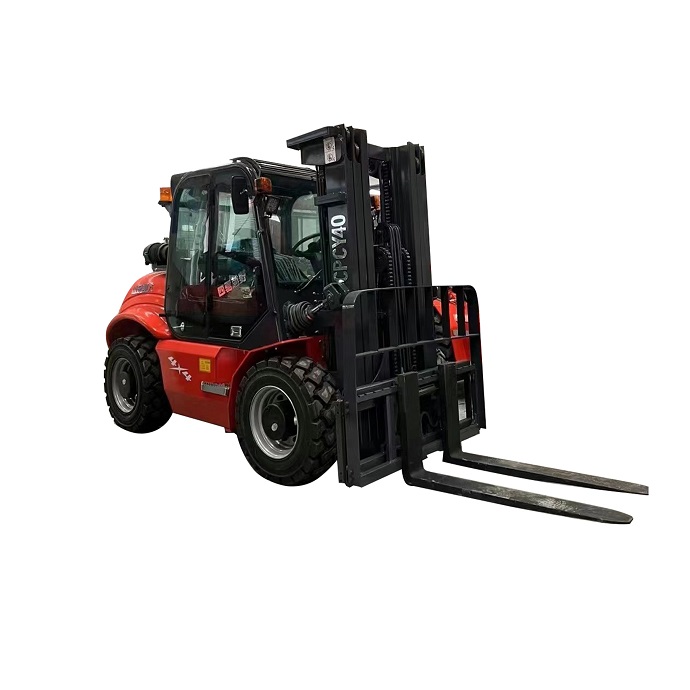

Pioneer-40A 4WD Rough Terrain Forklift

Kaystar Pioneer-40A 4WD Rough Terrain Forklift(4WD)

Details

ManufacturerKaystar
Model NamePioneer40A
AxleWheel speed reduction
GearboxTorque Converter
Power sourceDiesel
Operator typeSeated
FrameHeavy duty
Load center distance(mm)600
Operating leverForklift type(Multiple)
Driving ModeWorking mode/driving mode
Rated Load(kg)4000
Max. capacity(kg)4100
Max. Lift Height(mm)3000-6000
Mast forward tilt angle(Degree)6
Mast back elevation angle12
Machine Weight(Kg)5800
Max.Grade Ability≤35°
Steering ModeRear wheel steering
Drive modeFour-wheel drive(AWD)
Number of drive wheels4
Tyres typeCustomized pneumatic solid tire(tubeless)/solid
Dimensions of front wheels10-16.5
Dimensions of rear wheels10-16.5
Minimum Ground Clearance(mm)200
Wheelbase(mm)1710
Min.Turning Radius(mm)2800
Engine brandChina
Engine Power(kw)55
Service brakeHydraulic brake
Travel speed(km/h)30-35
Type of drive controlHydraulic
CounterweightCast Iron
Fork length(mm)1220,1370,1520,1670,1820,ect.
Overall dimensions(mm)3000*1500*2130(LWH)
Enclosed cabOptional
Wide field mastYes
Side shifterOptional
Air conditioneOptional
Air heaterOptional
Cummins/Isuzu EngineOptional
Euro 5/EPA engineOptional
Kaystar Pioneer40A Compact 4WD Forklift Features

Product Highlights

Heavy Duty:

Heavy-duty steel chassis, cast axles, mast and overhead guard deliver high strength and stability for high lifting heights and heavy loads.

Wide Mast View:

Mast layout is optimized for a wide view and clear visibility while operating.

Optimized Heat Dissipation Channel:

Optimized heat dissipation channel allows for larger radiator, keeping engine running reliably, even in the most demanding applications.

Environment Friendly:

High performance LS Mtron diesel engine offers durability and excellent fuel efficiency while meeting tough EPA Tier IV Final and EU Stage V emission regulations for engine exhaust emissions.
On-Demand Fully Hydrostatic Power Steering (FHPS) guarantees smooth steering, preventing over-run and kickback. Spinner knob allows easier one-handed steering.
Automotive-style levers for headlights and turn signals operate like a car. Easy and intuitive operating controls shorten learning time.

Comfort and Ergonomics:

Full consideration of comfort and ergonomics ensures the best efficiency and productivity while keeping the operator safe. Small diameter steering wheel with spinner knob and on-demand Fully Hydrostatic Power Steering (FHPS) ensures effortless steering during operation. Spacious step area with anti-slip design and a large hand grip provides easy entry and exit. Deluxe Suspension Seat is fully adjustable and reduces vibration to the driver to effectively reduce driver fatigue for all sizes of operators.

LED Lamps Provide Excellent Visibility:

Equipped with LED rear work lights, headlights, strobe and safety blue light. Bright light with low power consumption provides excellent visibility.

Low Total Cost of Ownership:

Our 4WD off-road forklifts are designed with a focus on delivering low total cost of ownership (TCO), making them an economical and reliable choice for demanding applications.

  1. Durable Construction: Built with high-quality materials and robust components, our forklifts minimize maintenance requirements and extend service life.
  2. Fuel Efficiency: Advanced engine technology ensures optimal fuel consumption, reducing operational costs over time.
  3. Versatile Design: Capable of handling diverse terrains and tasks, our forklifts reduce the need for additional equipment, maximizing your investment.
  4. Easy Maintenance: Simplified access to key components and reliable spare parts availability reduce downtime and repair expenses.
  5. Resale Value: The durability and reputation of our forklifts ensure strong resale value, further lowering the overall cost of ownership.

Various attachments for outdoor forklifts are available, and off-road forklift attachments can be customized

Various attachments for outdoor forklifts are available, and off-road forklift attachments can be customized
Attachments for 4x4 off-road forklifts
