Land Tiger-50R 4WD Rough Terrain Forklift

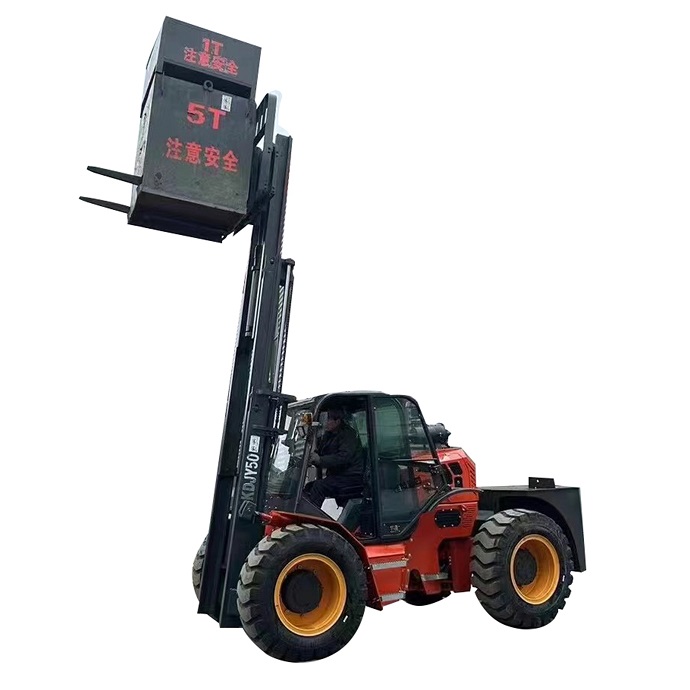

Kaystar Land Tiger Series 5-ton Rough Terrain Forklift(4WD)Rear Articulated(KDJY50)
Kaystar Land Tiger Series 5-ton Rough Terrain Forklift(4WD)Rear Articulated

Details

ManufacturerKaystar
Model NameLand Tiger50R(KDJY50)
Power sourceDiesel
AxleWheel speed reduction
GearboxTorque Converter
Operator typeSeated
Rated Load(kg)5000
Max. capacity(kg)6000
Max. Lift Height(mm)3000-6000
Mast forward tilt angle(Degree)6
Mast back elevation angle12
Machine weight(Kg)7800
Max.Grade Ability≤35°
Drive modeFour wheel drive
Number of drive wheels4
Tyres typePneumatic/Solid
Dimensions of front wheels16/70-20
Dimensions of rear wheels16/70-20
Minimum Ground Clearance(mm)290
Wheelbase(mm)2350
Min.Turning Radius(mm)4500
Engine brandChina
Engine Power(kw)74-77
Service brakeHydraulic/Air brake
Travel speed(km/h)28-30
Type of drive controlHydraulic
CounterweightConcrete and iron powder
Fork length(mm)1370,1520,1670,1820,ect.
Overall dimensions(mm)4200*2100*2450(LWH)
Land Tiger-50R 4WD Rough Terrain Forklift Product parameters
