Pioneer-35A 4WD Rough Terrain Forklift

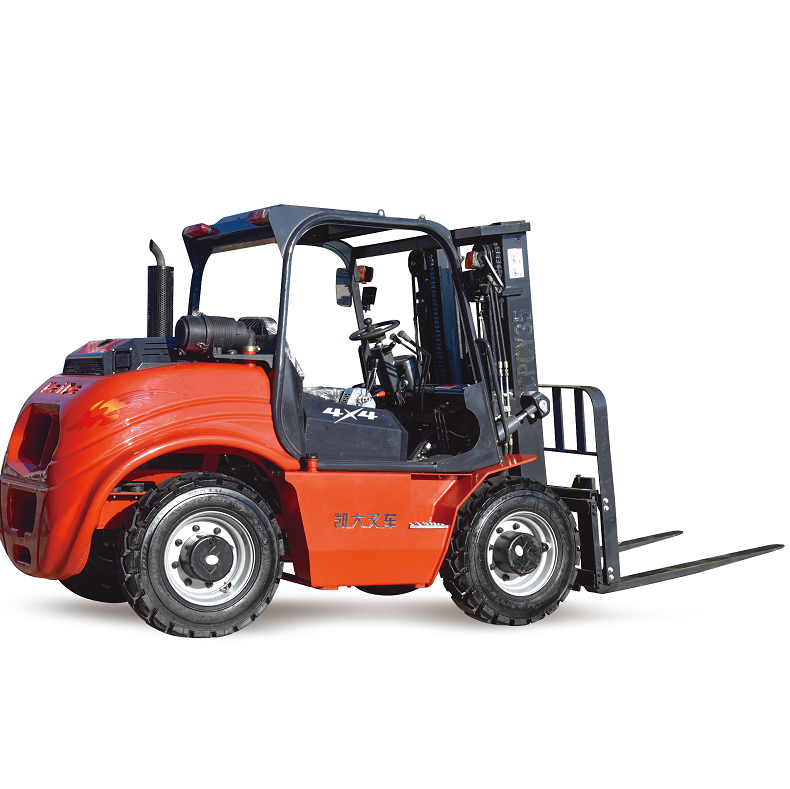

Kaystar Pioneer-35A 4WD Rough Terrain Forklift（4WD）
Details
| Manufacturer | Kaystar |
| Model Name | Pioneer35A |
| Axle | Wheel speed reduction |
| Gearbox | Torque Converter |
| Power source | Diesel |
| Operator type | Seated |
| Rated Load(kg) | 3500 |
| Max. capacity(kg) | 3500-3700 |
| Max. Lift Height(mm) | 3000-6000 |
| Machine Weight(Kg) | 5400 |
| Max.Grade Ability | ≤35° |
| Steering Mode | Rear wheel steering |
| Drive mode | Four-wheel drive(AWD) |
| Number of drive wheels | 4 |
| Tyres type | Customized pneumatic solid tire/solid |
| Dimensions of front wheels | 10-16.5 |
| Dimensions of rear wheels | 10-16.5 |
| Minimum Ground Clearance（mm） | 200 |
| Wheelbase(mm) | 1710 |
| Min.Turning Radius(mm) | 2800 |
| Engine brand | China |
| Engine Power(kw) | 55 |
| Service brake | Hydraulic/Air brake |
| Travel speed(km/h) | 22 |
| Type of drive control | Hydraulic |
| Counterweight | Cast Iron |
| Fork length(mm) | 1220,1370,1520,1670,1820,ect. |
| Overall dimensions(mm) | 2980*1500*2130(LWH) |
