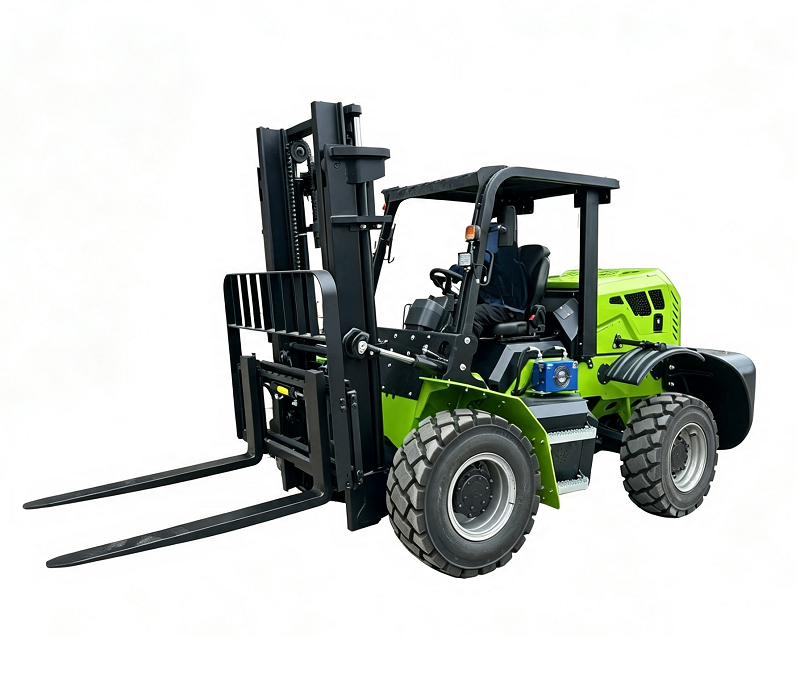

Kaystar Pioneer35CE 3.5 ton 4WD lithium electric rough terrain forklift
Kaystar Pioneer35CE（CPCD35） is a 3.5 ton pure electric four‑wheel drive rough terrain forklift powered by LiFePO4 battery. It supports both fast and slow charging, delivers strong off‑road traction, high ground clearance and stable lifting performance for agriculture, construction, yards and other rugged working sites. Multi‑stage mast is available upon request.
Product Overview
|
Specification
|
Detail
|
|
Model
|
Pioneer35CE（CPCD35）
|
|
Product Type
|
New Energy Electric Forklift (Pure EV)
|
|
Battery Type
|
LiFePO4 (Lithium Iron Phosphate)
|
|
Charging
|
Fast charging and slow charging supported
|
Battery Parameters
|
Specification
|
Detail
|
|
Battery Model
|
153.6V 320Ah
|
|
Cell Type
|
LiFePO4
|
|
Rated Voltage
|
153.6 V
|
|
Battery Dimensions
|
790 × 600 × 632 mm
|
Technical Specifications
|
Specification
|
Detail
|
|
Rated Load
|
3500 kg (3.5 t)
|
|
Max. Lifting Height
|
Multi-stage mast, customizable
|
|
Overall Weight
|
4800 kg
|
|
Overall Dimensions (L × W × H)
|
3830 × 1830 × 2200/2400 mm
|
|
Max. Gradeability
|
≤ 35°
|
|
Drive Mode
|
4WD (Four-Wheel Drive)
|
|
Front Tires
|
20.5/70-16
|
|
Rear Tires
|
12-16.5
|
|
Ground Clearance at Mast Bottom
|
220 mm
|
|
Ground Clearance at Wheel Center
|
250 mm
|
|
Wheelbase
|
1960 mm
|
|
Pump Motor Model
|
KC210HZ026
|
|
Pump Motor Peak Power
|
35 kW
|
|
Drive Motor Model
|
KC270HZ016
|
|
Drive Motor Power
|
Peak 35 kW / Rated 22 kW
|
|
Battery Voltage / Capacity
|
153.6 V 320 Ah
|
|
Mast Tilt Angle (Front / Rear)
|
6° / 12°
|
|
|
