Kaystar 4WD Rough Terrain Forklift LCD Dashboard Warning Lights & Troubleshooting Guide

Kaystar 4WD rough terrain forklifts are equipped with an advanced full-color LCD instrument cluster, providing real-time visualization of engine, hydraulic, electrical, and safety system status.
The high-resolution LCD display ensures clear readability in outdoor and harsh working environments, allowing operators to respond quickly to warning indicators and reduce unplanned downtime.

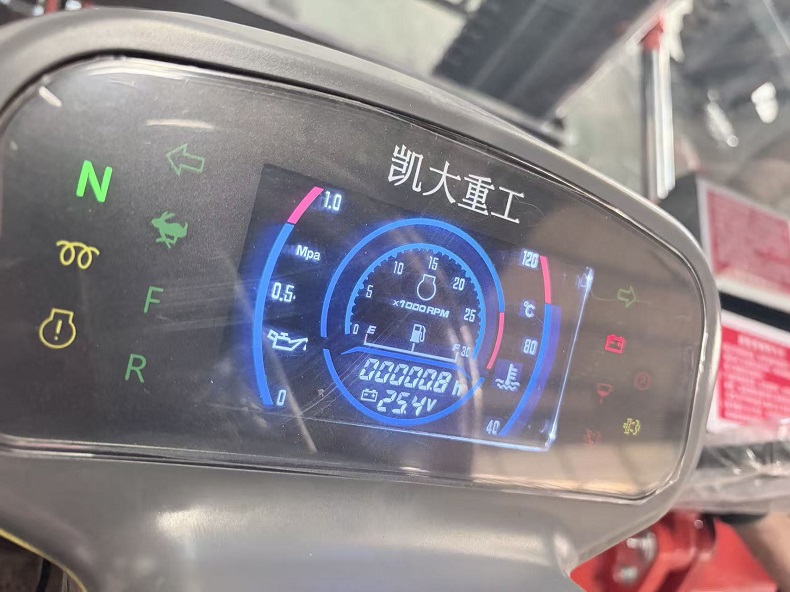

Kaystar 4WD rough terrain forklift LCD instrument cluster with warning indicators

LCD Dashboard Overview

The Kaystar LCD instrument cluster integrates:

Engine RPM, coolant temperature, and oil pressure gauges
Hydraulic pressure (MPa) monitoring
Fuel level, system voltage, and operating hour meter
Drive mode and gear position display (F / N / R)
Comprehensive warning and fault indicators

All information is presented on a single color LCD screen, improving situational awareness and operator safety during off-road operations.

Common Warning Lights Displayed on the Kaystar LCD Instrument Cluster

Warning Type：Engine Coolant Temperature High (Red)

LCD Icon Description / Meaning：Thermometer icon displayed in red zone on LCD with °C scale

Possible Causes：Low coolant level; water pump failure; radiator blockage

Immediate Action:Stop operation immediately; allow engine to cool; check coolant level; clean radiator fins

Recommended Inspection:Inspect water pump and thermostat; check cooling hoses for leaks

Warning Type:Low Engine Oil Pressure (Red)

LCD Icon Description / Meaning：Oil can / oil drop icon highlighted on LCD display

Possible Causes：Insufficient engine oil; oil pump failure; oil filter or passage blockage

Immediate Action:Shut down engine at once; check oil level and refill with correct oil

Recommended Inspection:Measure oil pressure; replace or clean oil filter; inspect bearing clearance

Warning Type:Charging System Failure (Red)

LCD Icon Description / Meaning：Battery icon or “+ / −” symbol illuminated on LCD

Possible Causes：Alternator malfunction; loose or slipping belt; poor electrical connections

Immediate Action:Check system voltage on LCD at idle (12V / 24V); inspect belt tension

Recommended Inspection:Repair alternator regulator/rectifier; tighten battery terminals

Warning Type:Hydraulic Pressure Abnormal (Yellow / Red)

LCD Icon Description / Meaning：Hydraulic system icon or MPa warning shown on LCD gauge

Possible Causes：Low hydraulic oil level; worn hydraulic pump; valve block malfunction

Immediate Action:Stop machine; check hydraulic oil level; refill approved hydraulic oil; inspect hoses

Recommended Inspection:Test hydraulic pump pressure; replace hydraulic filter; service control valve

Warning Type:Engine Malfunction Indicator (Yellow)

LCD Icon Description / Meaning：Engine fault symbol or error code displayed on LCD

Possible Causes：Sensor failure; fuel injection issue; emission system abnormality

Immediate Action:Reduce engine load; move machine to safe area; record LCD fault code

Recommended Inspection:Use diagnostic tool to read codes; inspect injectors, sensors, ECU

Warning Type:Brake System Warning (Red)

LCD Icon Description / Meaning：Brake disc / brake fluid icon visible on LCD

Possible Causes：Low brake fluid; worn brake pads; brake line leakage

Immediate Action:Check brake fluid level and pad thickness; avoid sudden braking

Recommended Inspection:Replace worn brake pads; repair brake lines; bleed brake system

LCD Warning Color Logic (Operator Reference)

Red indicators on the LCD screen signal critical system faults and require immediate shutdown
Yellow indicators on the LCD screen indicate system abnormalities; limited low-load operation is permitted
All warning icons and fault codes are clearly visualized on the color LCD instrument cluster for fast diagnosis

Advantages of Kaystar LCD Instrument Cluster

Compared with traditional analog gauges, the Kaystar full-color LCD dashboard offers:

Higher visibility under sunlight and dusty environments
Integrated fault icons and diagnostic information
Reduced misinterpretation of warning signals
Improved maintenance planning through accurate hour and system data

This intelligent LCD monitoring system supports Kaystar forklifts operating in construction, mining, agriculture, and other demanding off-road applications.
