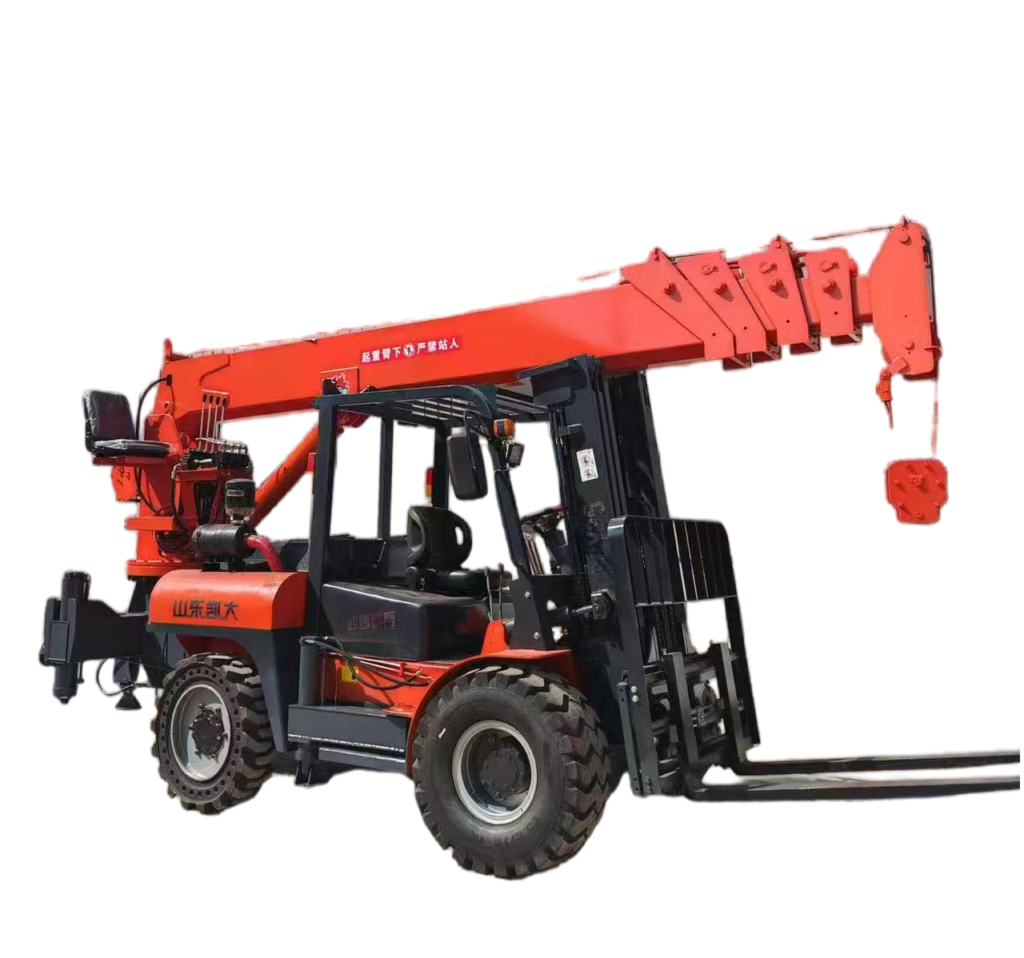

Meet the Kaida 5-ton 4WD all-terrain forklift — now enhanced with a powerful rear-mounted hydraulic crane. Built to perform in the toughest environments, from construction sites to mining fields, this machine combines strong lifting capacity, excellent off-road mobility, and rear-end lifting flexibility. The rear crane arm allows for vertical or angled lifting of pipes, equipment, and other heavy loads — ideal where forklifts and cranes are both needed. One forklift, two functions — drive, lift, and handle with power and precision.

Rear-Mounted Forklift Crane-5T(15m Boom)

5 ton 4wd forklift with rear crane attachment

3.5T 4x4 Forklift

Model NamePioneer35
Power sourceDiesel
AxleWheel speed reduction
GearboxTorque Converter/Automatic Transmission
Operator typeSeated
FrameHeavy duty
Load center distance(mm)600
Operating leverForklift type(Multiple)
Driving ModeWorking mode/driving mode
Rated Load(kg)3500
Max. capacity(kg)3500-3800
Max. Lift Height(mm)4500
Mast forward tilt angle(Degree)6
Mast back elevation angle12
Machine Weight(Kg)5500
Steering ModeRear wheel steering
Max.Grade Ability≤35°
Drive modeFour-wheel drive(AWD)
Number of drive wheels4
Tyres typeSolid tire at rear wheel, pneumatic tire at front wheel
Dimensions of front wheels12-16.5
Dimensions of rear wheels10-16.5
Minimum Ground Clearance(mm)280
Wheelbase(mm)1950
Min.Turning Radius(mm)3500
Engine brandChina Yunnei
Engine Power(kw)58
Service brakeHydraulic/Air brake
Travel speed(km/h)22
Type of drive controlHydraulic
CounterweightCrane Boom
Fork length(mm)1370
Overall dimensions(mm)3350*1720*2300(without crane)
Enclosed cabOptional
Side shifterYes
Air conditionerOptional
HeaterOptional

5T Crane

Model Name5T Boom
Power sourceHydraulic
Maximum load capacity:5T(Fully retracted boom)
Maximum load capacity:1T(Boom fully extended)
Rotate360°
hoistYes
cable30m
Maximum length of boom15m
Hydraulic legs5
basket (working platform)Optional
Boom sections5
