Experience unmatched versatility with the Kaida 5-ton 4WD all-terrain forklift, now upgraded with a rear-mounted hydraulic crane. Designed for challenging environments like construction sites, farms, and mining areas, this machine combines powerful off-road performance with efficient rear-end lifting capabilities. The articulated design ensures superior maneuverability, while the tail-mounted boom adds extended lifting functions — perfect for handling pipes, equipment, and materials where forklifts and cranes are both needed. Built tough for heavy-duty outdoor operations. One machine, dual purpose — drive, lift, and conquer any terrain.

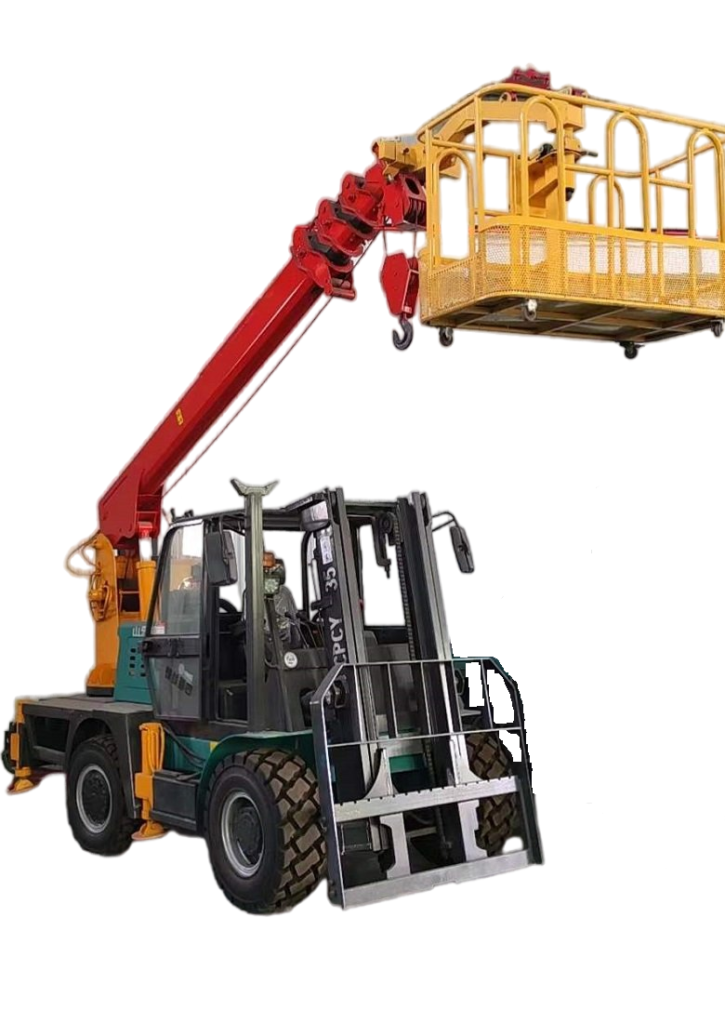

Rear-Mounted Forklift Crane-5T(12m Boom)

5T 4x4 forklift with tail-end boom for lifting operations

3.5T 4x4 Forklift

Model NamePioneer35
Power sourceDiesel
AxleWheel speed reduction
GearboxTorque Converter/Automatic Transmission
Operator typeSeated
FrameHeavy duty
Load center distance(mm)600
Operating leverForklift type(Multiple)
Driving ModeWorking mode/driving mode
Rated Load(kg)3500
Max. capacity(kg)3500-3800
Max. Lift Height(mm)3000
Mast forward tilt angle(Degree)6
Mast back elevation angle12
Machine Weight(Kg)5500
Steering ModeRear wheel steering
Max.Grade Ability≤35°
Drive modeFour-wheel drive(AWD)
Number of drive wheels4
Tyres typeCustomized pneumatic solid tire(tubeless)
Dimensions of front wheels12-16.5
Dimensions of rear wheels10-16.5
Minimum Ground Clearance(mm)280
Wheelbase(mm)1950
Min.Turning Radius(mm)3500
Engine brandChina Yunnei
Engine Power(kw)58
Service brakeHydraulic/Air brake
Travel speed(km/h)22
Type of drive controlHydraulic
CounterweightCrane Boom
Fork length(mm)1370
Overall dimensions(mm)3350*1720*2300(without crane)
Enclosed cabOptional
Side shifterOptional
Air conditionerOptional
HeaterOptional

5T Crane

Model Name5T Boom
Power sourceHydraulic
Maximum load capacity:5T(Fully retracted boom)
Maximum load capacity:1T(Boom fully extended)
Rotate360°
hoistYes
cable20m
Maximum length of boom12m
Hydraulic legs5
basket (working platform)Yes
Boom sections4
