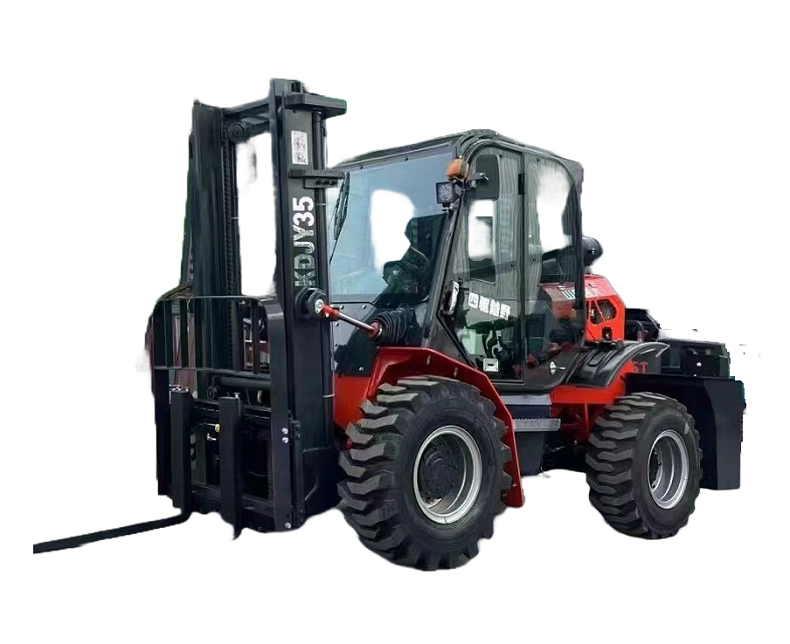

Kaystar Pioneer Series 3.5-ton Rough Terrain Forklift（4WD）
| Manufacturer |
Kaystar |
| Model Name |
Pioneer35C(CPCY35) |
| Body structure |
Monocoque |
| Power source |
Diesel |
| Axle |
Wheel speed reduction |
| Gearbox |
Torque Converter/Automatic Transmission |
| Operator type |
Seated |
| Frame |
Heavy duty |
| Load center distance(mm) |
600 |
| Operating lever |
Forklift type（Multiple） |
| Driving Mode |
Working mode/driving mode |
| Rated Load(kg) |
3500 |
| Max. capacity(kg) |
3500-3800 |
| Max. Lift Height(mm) |
3000-6000 |
| Mast forward tilt angle（Degree） |
6 |
| Mast back elevation angle |
12 |
| Machine Weight(Kg) |
5400 |
| Steering Mode |
Rear wheel steering |
| Max.Grade Ability |
≤35° |
| Drive mode |
Four-wheel drive(AWD) |
| Number of drive wheels |
4 |
| Tyres type |
Customized pneumatic solid tire/Solid |
| Dimensions of front wheels |
20.5/70-16 |
| Dimensions of rear wheels |
12-16.5 |
| Minimum Ground Clearance（mm） |
280 |
| Wheelbase(mm) |
1950 |
| Min.Turning Radius(mm) |
3500 |
| Engine brand |
China YunNei/QuanChai |
| Engine Power(kw) |
58 |
| Service brake |
Hydraulic/Air brake |
| Travel speed(km/h) |
22 |
| Type of drive control |
Hydraulic |
| Diesel/hydraulic oil tank |
50L |
| Battery |
12V x 2 |
| Counterweight |
Concrete and iron powder(1750KG） |
| Fork length(mm) |
1220,1370,1520,1670,1820,ect. |
| Overall dimensions(mm) |
3500*1800*2250 |
| Enclosed cab |
Optional |
| Side shifter |
Optional |
| Fork Positioner |
Optional |
| Air Intake Preheating |
Optional |
| Fuel water separator |
Optional |
| Air brake dryer |
Optional |
| Electronic gear selector |
Optional |
| Air conditioner |
Optional |
| Air heater |
Optional |
| Cummins Engine |
Optional |
Data sheet of Kaystar Pioneer Series 3.5-ton Rough Terrain Forklift（4WD)
Product Highlights
Heavy Duty:
Heavy-duty steel chassis, cast axles, mast and overhead guard deliver high strength and stability for high lifting heights and heavy loads.
Wide Mast View:
Mast layout is optimized for a wide view and clear visibility while operating.
Optimized Heat Dissipation Channel:
Optimized heat dissipation channel allows for larger radiator, keeping engine running reliably, even in the most demanding applications.
Environment Friendly:
High performance diesel engine offers durability and excellent fuel efficiency while meeting tough EPA Tier IV Final and EU Stage V emission regulations for engine exhaust emissions.
On-Demand Fully Hydrostatic Power Steering (FHPS) guarantees smooth steering, preventing over-run and kickback. Spinner knob allows easier one-handed steering.
Automotive-style levers for headlights and turn signals operate like a car. Easy and intuitive operating controls shorten learning time.
Comfort and Ergonomics:
Full consideration of comfort and ergonomics ensures the best efficiency and productivity while keeping the operator safe. Small diameter steering wheel with spinner knob and on-demand Fully Hydrostatic Power Steering (FHPS) ensures effortless steering during operation. Spacious step area with anti-slip design and a large hand grip provides easy entry and exit. Deluxe Suspension Seat is fully adjustable and reduces vibration to the driver to effectively reduce driver fatigue for all sizes of operators.
LED Lamps Provide Excellent Visibility:
Equipped with LED rear work lights, headlights, strobe and safety blue light. Bright light with low power consumption provides excellent visibility.
Low Total Cost of Ownership:
Our 4WD off-road forklifts are designed with a focus on delivering low total cost of ownership (TCO), making them an economical and reliable choice for demanding applications.
- Durable Construction: Built with high-quality materials and robust components, our forklifts minimize maintenance requirements and extend service life.
- Fuel Efficiency: Advanced engine technology ensures optimal fuel consumption, reducing operational costs over time.
- Versatile Design: Capable of handling diverse terrains and tasks, our forklifts reduce the need for additional equipment, maximizing your investment.
- Easy Maintenance: Simplified access to key components and reliable spare parts availability reduce downtime and repair expenses.
- Resale Value: The durability and reputation of our forklifts ensure strong resale value, further lowering the overall cost of ownership.
Various attachments for outdoor forklifts are available, and off-road forklift attachments can be customized
Various attachments for outdoor forklifts are available, and off-road forklift attachments can be customized
customizable rough terrain forklift attachments for heavy loads
