Landtiger Series 4×4 Forklift Troubleshooting: No Power Issue

Landtiger Series 4x4 Forklift Troubleshooting: No Power Issue

Fault Description:
When attempting to start the Kaida(Kaystar) Landtiger series 4x4 forklift, the entire system shows no power—no dashboard display, and electrical components fail to operate.

---

Troubleshooting Steps

Step 1: Check the Battery

1. Measure Battery Voltage: Use a multimeter to measure the battery voltage. The normal voltage should be 12V or 24V, depending on the forklift's specification.
2. Inspect the Battery Condition: Check for oxidation or loose terminals at the battery connections. Clean and tighten the terminals as necessary.
3. Charge or Replace the Battery: If the battery voltage is below the required level, recharge or replace it with a new one.

---

Step 2: Inspect the Fuses

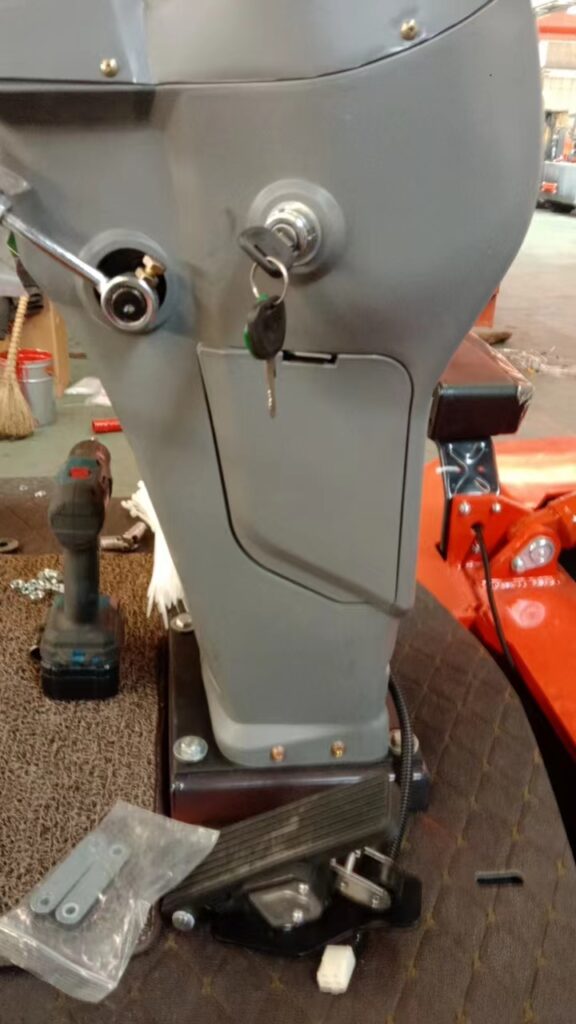

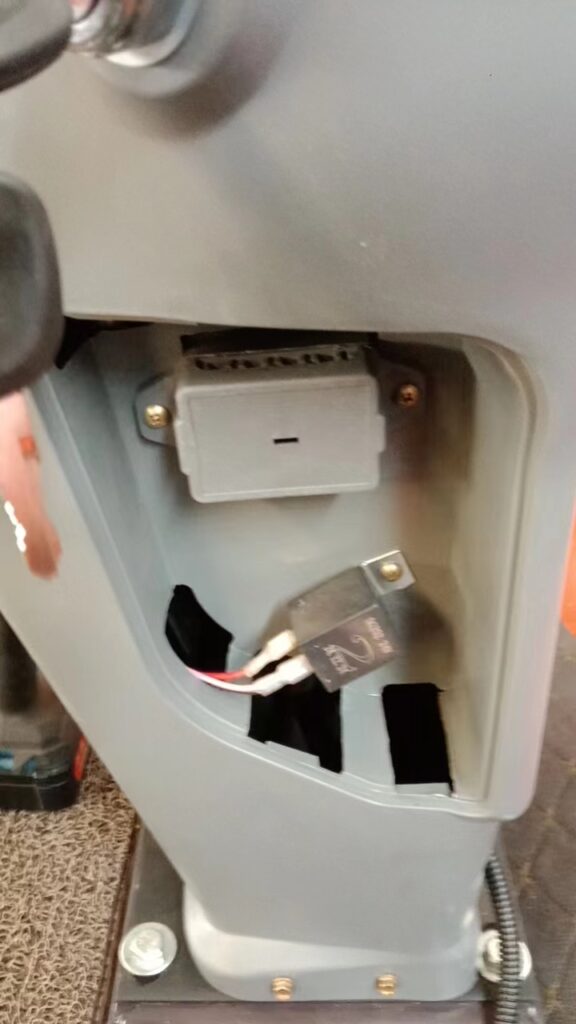

1. Locate the Fuse Box: Refer to the user manual to find the fuse box location (usually near the driver’s cabin).
2. Check Fuse Condition: Remove and visually inspect each fuse for signs of burning or damage. You can also use a multimeter to test for continuity.
3. Replace Blown Fuses: If any fuses are blown, replace them with fuses of the same specification.

---

Step 3: Check the Battery Ground Connection

1. Inspect Ground Wire: Ensure that the battery's negative cable is securely connected to the forklift chassis with no rust, looseness, or breakage.
2. Clean Contact Surfaces: If there is rust or dirt at the connection point, clean it thoroughly with sandpaper and ensure a tight fit.
3. Test Ground Resistance: Use a multimeter to check the ground resistance to ensure a proper connection.

---

Keywords and Additional Information

• Kaida 4x4 Forklift: The Landtiger series is part of Kaida’s rugged off-road forklift lineup, designed for demanding outdoor environments.
• Off-Road Forklift Factory: These troubleshooting steps are essential for maintaining the performance of forklifts produced by Kaida's renowned off-road forklift factory.
• 4WD Forklift Excellence: Kaida’s Landtiger series showcases robust 4-wheel drive capabilities, making it a popular choice in mining, construction, and agricultural applications.

---

Summary

After completing these steps, if the 4WD forklift still fails to power up, it is advisable to contact professional technicians for further inspection of the electrical system, including the ignition switch, power relay, and control modules.

Following these detailed troubleshooting guidelines ensures the reliability and functionality of Kaida (Kaystar)Landtiger 4x4 forklifts, essential for off-road and industrial tasks.
