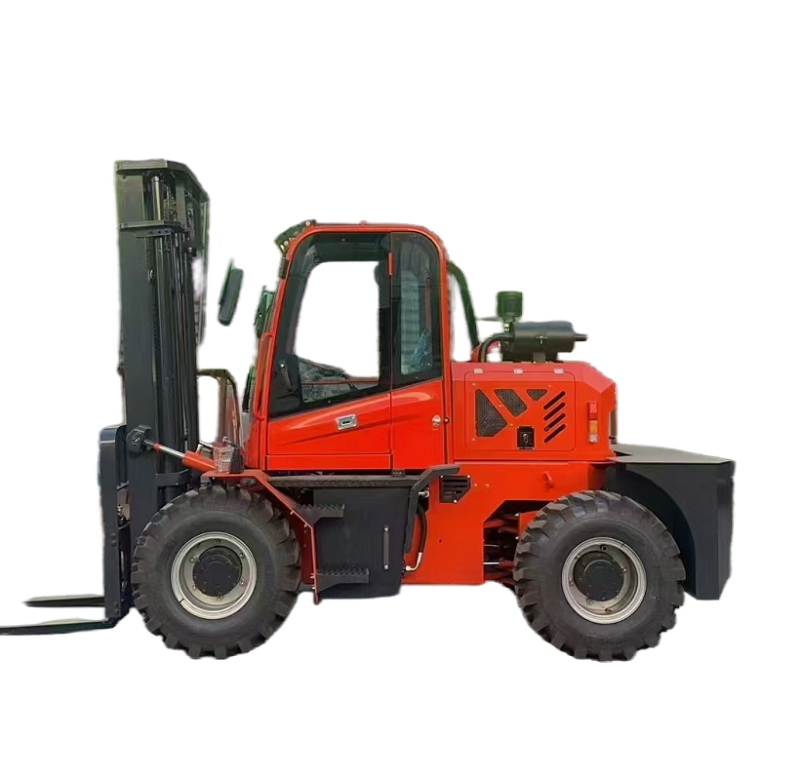

Land Tiger-35RC 4WD Rough Terrain Forklift

Details

Manufacturer	Kaystar
Model Name	Land Tiger35RC
Body And Steering	Rear Articulated
Power source	Diesel
Axle	Wheel speed reduction
Gearbox	Torque Converter/Automatic transmission
Operator type	Seated
Frame	Heavy duty
Load center distance(mm)	600
Operating lever	Loader type（Single）
Driving Mode	Working mode/driving mode
Rated Load(kg)	3500
Max. capacity(kg)	3500-3600
Max. Lift Height(mm)	3000-6000
Mast forward tilt angle（Degree）	6
Mast back elevation angle	12
Machine weight(Kg)	4800
Max.Grade Ability	≤35°
Drive mode	Four wheel drive
Number of drive wheels	4
Tyres type	Pneumatic/Solid/High tread tires
Dimensions of front wheels	23.5/70-16
Dimensions of rear wheels	23.5/70-16
Minimum Ground Clearance(mm)	260/280
Wheelbase(mm)	1740
Min.Turning Radius(mm)	3500
Engine brand	China Quanchai/YunNei
Engine Power(kw)	58
Service brake	Hydraulic/Air brake
Travel speed(km/h)	25
Type of drive control	Hydraulic
Counterweight	Concrete and iron powder
Fork length(mm)	1220,1370,1520,1670,1820,ect.
Overall dimensions(mm)	3450*1850*2220(LWH)
Enclosed cab	Yes
Wide field mast	Yes
Side shifter	Optional
Fork Positioner	Optional
Air Intake Preheating	Optional
Fuel water separator	Optional
Air brake dryer	Optional
Electronic gear selector	Optional
Air conditioner	Optional
Air heater	Optional
Cummins Engine	Optional
Euro 5/EPA engine	Optional

Product Highlights

Heavy Duty:

Heavy-duty steel chassis, cast axles, mast and overhead guard deliver high strength and stability for high lifting heights and heavy loads.

Wide Mast View:

Mast layout is optimized for a wide view and clear visibility while operating.

Optimized Heat Dissipation Channel:

Optimized heat dissipation channel allows for larger radiator, keeping engine running reliably, even in the most demanding applications.

Environment Friendly:

High performance diesel engine offers durability and excellent fuel efficiency while meeting tough EPA Tier IV Final and EU Stage V emission regulations for engine exhaust emissions.
On-Demand Fully Hydrostatic Power Steering (FHPS) guarantees smooth steering, preventing over-run and kickback. Spinner knob allows easier one-handed steering.
Automotive-style levers for headlights and turn signals operate like a car. Easy and intuitive operating controls shorten learning time.

Comfort and Ergonomics:

Full consideration of comfort and ergonomics ensures the best efficiency and productivity while keeping the operator safe. Small diameter steering wheel with spinner knob and on-demand Fully Hydrostatic Power Steering (FHPS) ensures effortless steering during operation. Spacious step area with anti-slip design and a large hand grip provides easy entry and exit. Deluxe Suspension Seat is fully adjustable and reduces vibration to the driver to effectively reduce driver fatigue for all sizes of operators.

LED Lamps Provide Excellent Visibility:

Equipped with LED rear work lights, headlights, strobe and safety blue light. Bright light with low power consumption provides excellent visibility.

Low Total Cost of Ownership:

Our 4WD off-road forklifts are designed with a focus on delivering low total cost of ownership (TCO), making them an economical and reliable choice for demanding applications.

1. Durable Construction: Built with high-quality materials and robust components, our forklifts minimize maintenance requirements and extend service life.
2. Fuel Efficiency: Advanced engine technology ensures optimal fuel consumption, reducing operational costs over time.
3. Versatile Design: Capable of handling diverse terrains and tasks, our forklifts reduce the need for additional equipment, maximizing your investment.
4. Easy Maintenance: Simplified access to key components and reliable spare parts availability reduce downtime and repair expenses.
5. Resale Value: The durability and reputation of our forklifts ensure strong resale value, further lowering the overall cost of ownership.

Various attachments for outdoor forklifts are available, and off-road forklift attachments can be customized

Certification: The preferred manufacturer for cross-border cooperation
