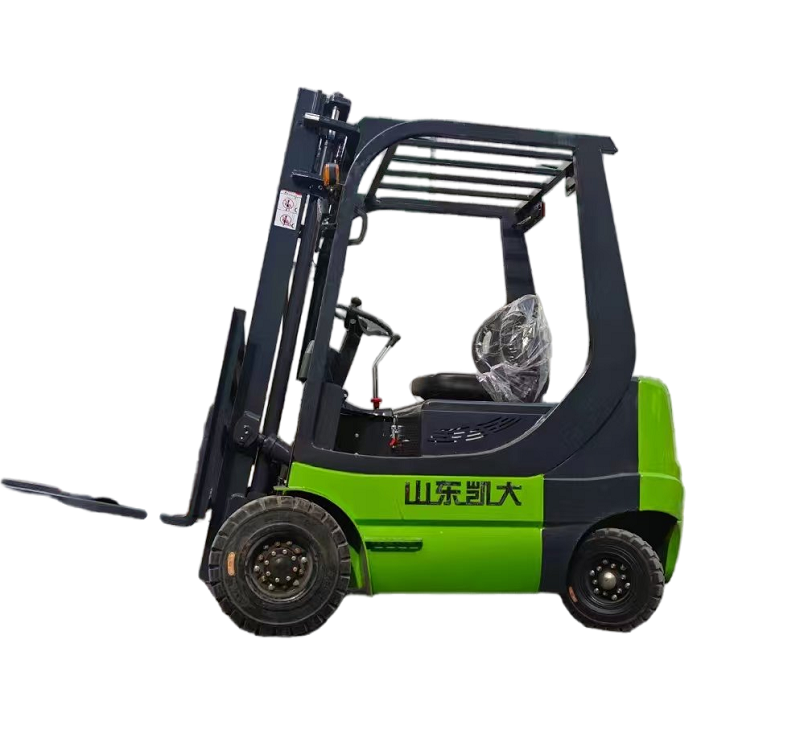

KE-15A 1.5 Ton Electric Forklift

Details

Manufacturer	Kaystar
Model Name	KE-15A
Power source	Electric
Operator type	Seated
Transmission mode	Machinery
Frame structure	Integrated frame - four pivot points
Rated Load(kg)	1500
Max. Lift Height(mm)	3000-4500
Load Center(mm）	500
Mast forward tilt angle(Degree)	7
Mast back elevation angle	13
Machine Weight(Kg)	2350
Battery voltage	60V
Battery capacity	160AH
Charging Voltage	73V
Engine power (motor)	4KW
Working motor	3KW
Battery Model	Lithium battery/Lead acid battery
Tyres type	Non inflatable rubber solid tire
Dimensions of front wheels	6.50-10
Dimensions of rear wheels	5.00-8
Steering Mode	Rear wheel steering
Drive mode	Front wheel drive
Number of drive wheels	2
Maximum lifting speed(mm/s)	220-240
Maximum descent speed(mm/s)	330-420
Service brake	Hydraulic brake
Travel speed(km/h)	12-15
Type of drive control	Hydraulic
Minimum turning radius(mm)	1300
Wheelbase	1480
Ground clearance at the center of the wheelbase(mm)	130
Ground clearance at the bottom of the mast(mm)	120
Fork length(mm)	1220,1370 ect.
Dimension(mm)	2100(L)1200(W)2120(H)
Safety belt	Y
Sideshifter	Optional
Free-lift	Optional
