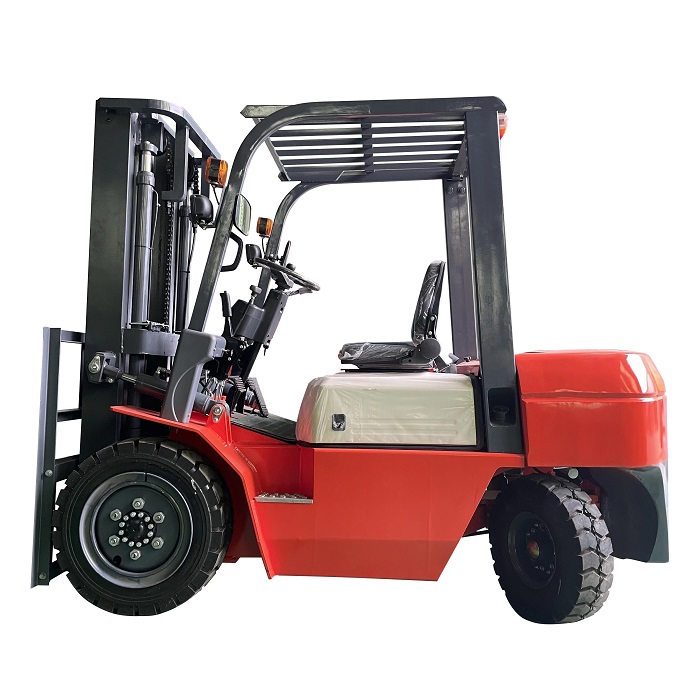

KD-30A 3T Diesel Forklift

1

Model

KD-30A

2

Power Type

Diesel

3

Rated Capacity

kg

3000

4

Load Centre

mm

500

5

Lift Height

mm

3000

6

Fork Size LxW*T

mm

1070x120x40

7

Mast Tilt Angle F/R

Deg

6°/12°

8

Front Overhang (Wheel center to fork face)

mm

465

9

Ground Clearance (Bottom of mast)

mm

110

10

Length to face offork(Without fork)

mm

2595

11

Overall Width

mm

1150

12

Overall Dimension Mast Lowered Height

mm

2070

13

Mast Extended Height(With backrest)

mm

4070

14

Overhead Guard Height

mm

2070

15

Turning Radius (outside)

mm

2310

16

Min insecting aisle

mm

2380

17

Speed

Travel (Empty load)

km/h

19

18

Speed

Lifting(Full load)

mm/s

530

19

Max.Gradeability

%

20

20

Tire

Front

28x9-15

21

Tire

Rear

6.50-10

22

Wheelbase

mm

1600

23

Service weight

kg

3590

24

Battery Voltage/Capacity

V/Ah

12/80

25

Model

C490

26

Manufacture

Yunnei

27

Engine

Rated output/r.p.m.

kw

36.8/2500

28

Engine

No.of Cylinder

4

29

Engine

Fuel Tank Capacity

L

60

30

Transmission

Type

Hydraulic

31

Transmission

Stage FWD/RVS

1/1

32

Transmission

Operating Pressure for Attachment

Mpa

18
