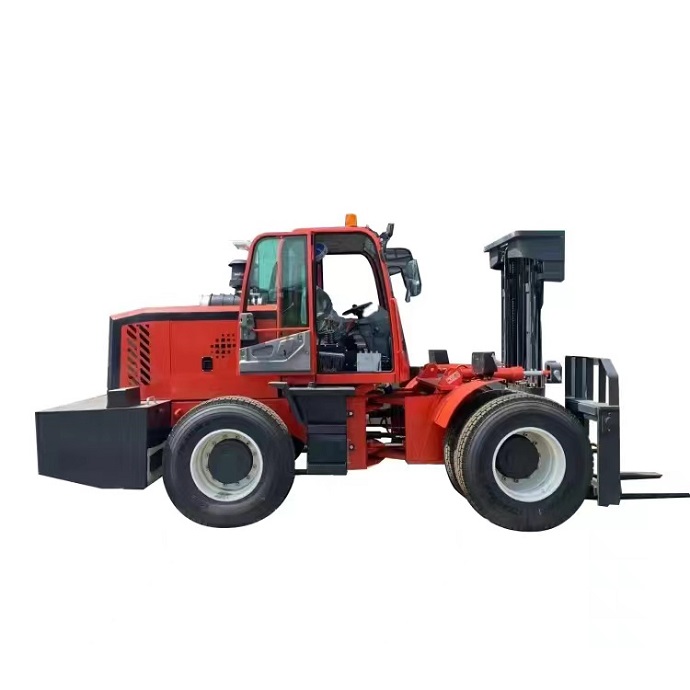

Land Tiger-80 4WD Rough Terrain Forklift

Yuchai Diesel power,four-wheel drive, articulated,double row wheels.

6-ton,7-ton and 8-ton four-wheel drive rough terrain forklifts are customized products, please Contact Us for detailed consultation.

Details

Manufacturer	Kaystar
Model Name	Land Tiger70(KDJY70)
Body And Steering	Rear Articulated
Power source	Diesel
Axle	Wheel speed reduction/Automatic Transmission
Gearbox	Torque Converter
Operator type	Seated
Frame	Heavy duty
Load center distance(mm)	500
Operating lever	Loader type（Single）
Driving Mode	Working mode/driving mode
Rated Load(kg)	7000
Max. capacity(kg)	7000
Max. Lift Height(mm)	3000-6000
Mast forward tilt angle（Degree）	6
Mast back elevation angle	12
Machine weight(Kg)	7800
Max.Grade Ability	≤35°
Drive mode	Four wheel drive
Number of drive wheels	4
Tyres type	Pneumatic/Off-road
Dimensions of front wheels	12-22.5
Dimensions of rear wheels	12-22.5
Minimum Ground Clearance(mm)	290
Wheelbase(mm)	2350
Min.Turning Radius(mm)	4500
Engine brand	China Yuchai/Yunnei
Engine Power(kw)	85
Service brake	Hydraulic/Air brake
Travel speed(km/h)	28-30
Type of drive control	Hydraulic
Diesel/hydraulic oil tank	70L
Battery	12V x 2
Counterweight	Concrete and iron powder
Fork length(mm)	1520,1670,1820,ect.
Overall dimensions(mm)	4600*2300*2800(LWH)
Enclosed cab	Yes
Wide field mast	Yes
Side shifter	Optional
Fork Positioner	Optional
Air Intake Preheating	Optional
Fuel water separator	Optional
Air brake dryer	Optional
Air conditioner	Optional
Air heater	Optional
Electronic gear selector	Optional
Euro 5/EPA engine	Optional

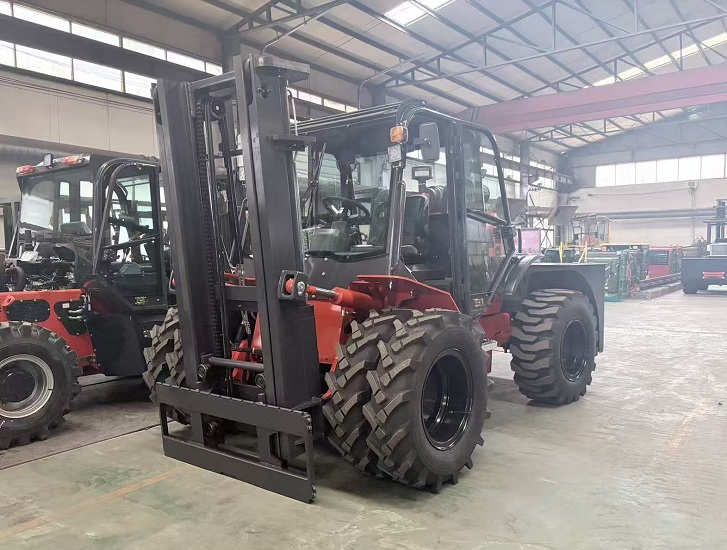

Rear-articulated four-wheel drive off-road forklift, with a rated load capacity of 6 tons or 7 tons, custom-made, featuring a double-row wheel 300 hydraulic torque converter, and an extended 25-type axle with double-row wheels.

Product Highlights

Heavy Duty:

Heavy-duty steel chassis, cast axles, mast and overhead guard deliver high strength and stability for high lifting heights and heavy loads.

Wide Mast View:

Mast layout is optimized for a wide view and clear visibility while operating.

Optimized Heat Dissipation Channel:

Optimized heat dissipation channel allows for larger radiator, keeping engine running reliably, even in the most demanding applications.

Environment Friendly:

High performance diesel engine offers durability and excellent fuel efficiency while meeting tough EPA Tier IV Final and EU Stage V emission regulations for engine exhaust emissions.
On-Demand Fully Hydrostatic Power Steering (FHPS) guarantees smooth steering, preventing over-run and kickback. Spinner knob allows easier one-handed steering.
Automotive-style levers for headlights and turn signals operate like a car. Easy and intuitive operating controls shorten learning time.

Comfort and Ergonomics:

Full consideration of comfort and ergonomics ensures the best efficiency and productivity while keeping the operator safe. Small diameter steering wheel with spinner knob and on-demand Fully Hydrostatic Power Steering (FHPS) ensures effortless steering during operation. Spacious step area with anti-slip design and a large hand grip provides easy entry and exit. Deluxe Suspension Seat is fully adjustable and reduces vibration to the driver to effectively reduce driver fatigue for all sizes of operators.

LED Lamps Provide Excellent Visibility:

Equipped with LED rear work lights, headlights, strobe and safety blue light. Bright light with low power consumption provides excellent visibility.

Low Total Cost of Ownership:

Our 4WD off-road forklifts are designed with a focus on delivering low total cost of ownership (TCO), making them an economical and reliable choice for demanding applications.

1. Durable Construction: Built with high-quality materials and robust components, our forklifts minimize maintenance requirements and extend service life.
2. Fuel Efficiency: Advanced engine technology ensures optimal fuel consumption, reducing operational costs over time.
3. Versatile Design: Capable of handling diverse terrains and tasks, our forklifts reduce the need for additional equipment, maximizing your investment.
4. Easy Maintenance: Simplified access to key components and reliable spare parts availability reduce downtime and repair expenses.
5. Resale Value: The durability and reputation of our forklifts ensure strong resale value, further lowering the overall cost of ownership.

Various attachments for outdoor forklifts are available, and off-road forklift attachments can be customized

Certification: The preferred manufacturer for cross-border cooperation
