Pioneer-45 4WD Rough Terrain Forklift

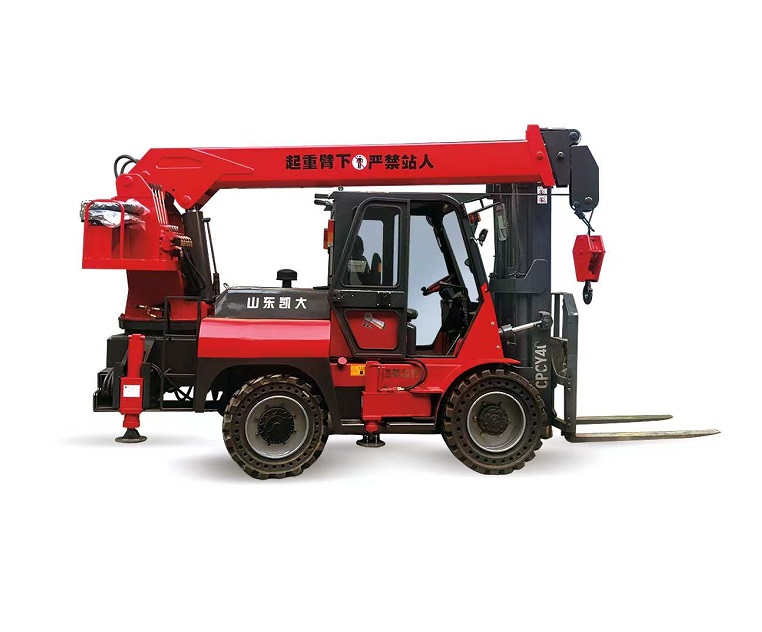

Pioneer-45 4.5-ton 4WD Rough Terrain Forklift
Details
| Manufacturer | Kaystar |
| Model Name | Pioneer45 |
| Power source | Diesel |
| Axle | Wheel speed reduction |
| Gearbox | Torque Converter |
| Operator type | Seated |
| Rated Load(kg) | 4500 |
| Max. capacity(kg) | 4500-5000 |
| Max. Lift Height(mm) | 3000-6000 |
| Mast forward tilt angle（Degree） | 6 |
| Mast back elevation angle | 12 |
| Machine Weight(Kg) | 6900 |
| Steering Mode | Four wheel steering |
| Max.Grade Ability | ≤35° |
| Drive mode | Four-wheel drive(AWD) |
| Number of drive wheels | 4 |
| Front wheel Tires(Solid tire) | Customized pneumatic solid tire(tubeless)/Solid |
| Rear wheel Tires(Solid tire) | Customized pneumatic solid tire(tubeless)/Solid |
| Minimum Ground Clearance（mm） | 280 |
| Wheelbase(mm) | 1740 |
| Min.Turning Radius(mm) | 3700/3100 |
| Engine brand | China |
| Engine Power(kw) | 76 |
| Service brake | Hydraulic/Air brake |
| Travel speed(km/h) | 22 |
| Type of drive control | Hydraulic |
| Counterweight | Cast Iron |
| Fork length(mm) | 1220,1370,1520,1670,1820,ect. |
| Overall dimensions(mm) | 3500*1850*2500 |
